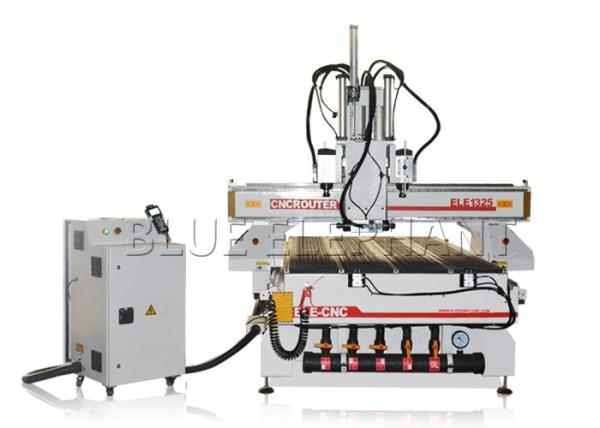

Woodworking vacuum bed cnc router machine , 1325 auto matic tool change cnc router with three spindles

Jinan Blue Elephant CNC Machinery Co., Ltd.

Woodworking vacuum bed cnc router machine , 1325 auto matic tool change cnc router with three spindles

Brand Name : BLUE ELEPHANT

Model Number : ELE1325

Certification : CE, ISO9001,SGS,CIQ

Place of Origin : Jinan City, Shandong Province,China

MOQ : 1set

Price : 15999-25999$

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200sets per Month

Delivery Time : 15-20working days

Packaging Details : Standard marine export plywood case

Table Surface : T-slot Table

Frame : Welded Structure

X, Y Structure : Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure : Hiwin Rail Linear Bearings and Ball Screw

Spindle Power : 3KW HSD air cooling spindle for both heads

Drive Motors : Stepper System

Operating System : DSP control system(options: NCstudio/Mach3 PC Software)

Software Compatibility : Type3/UcancameV9 Software

Contact Now

woodworking vacuum bed cnc router machine , 1325 auto matic tool change cnc router with three spindles

Features

The cnc router machine is specially designed for woodworking industrial, with multiple spindles auto-changing.

Can be choosen a spindle rotated 90 degree for lock slot . All components used are top quality in the world.
3kw HSD and 4.5kw HSD spindles can be changed automatically with the commands from control system.

Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.

Specification

NO. Description Parameter
1 X,Y,Z Working Area 1300x2500x160mm
2 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
3 X,Y,Z Repositioning Accuracy ±0.03mm
4 Table Surface T-slot Table
5 Frame Welded Structure
6 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
7 Z Structure Hiwin Rail Linear Bearings and Ball Screw
8 Max. Power Consumption (Without Spindle) 2. kw~2.2Kw
9 Max. Rapid Travel Rate 33000mm/min
10 Max. Working Speed 25000mm/min
11 Spindle Power 3KW HSD air cooling spindle for both heads
12 Spindle Speed 0-18000RPM
13 Drive Motors Stepper System
14 Working Voltage AC220V/50/60Hz,3PH (Option: 380V)
15 Command Language G Code
16 Operating System DSP control system(options: NCstudio/Mach3 PC Software)
17 Collet ER20
18 X,Y Resolution <0.01mm
19 Software Compatibility Type3/UcancameV9 Software
20 Running Environment Temperature 0 - 45 Centigrade

Application

Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch

process any wooden products, antique furniture, crafts gifts, relief processing.

1 . WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2 .Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3 . The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.

Our Services

1 , Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2 , Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3 , Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4 , We offer 24 hours technical support by call, and email.
5 , Our technician can give you remote guide online(Skype or MSN) if you have any question.
6 , We can record videos of operating the laser machine.
7 , Free training course in our factory.
8 . Machine will be adjusted before it is delivered , operation disk/CD was included.
